Table Chart ​

Table Chart displays data as a table. The source type lets you choose between a raw table that shows fetched rows as-is, and an aggregated table that groups and aggregates data.

Drawing types ​

Table Chart supports the following drawing types.

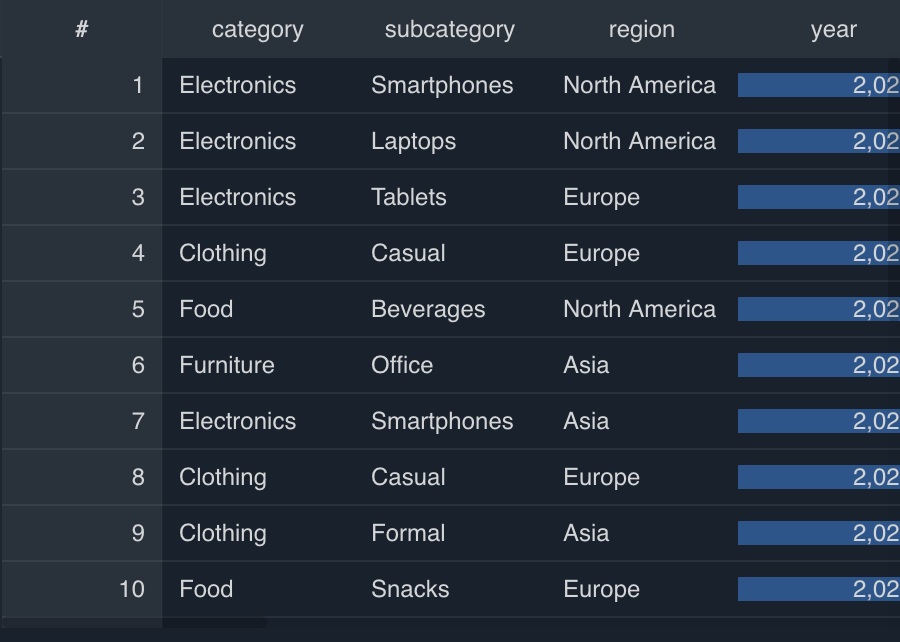

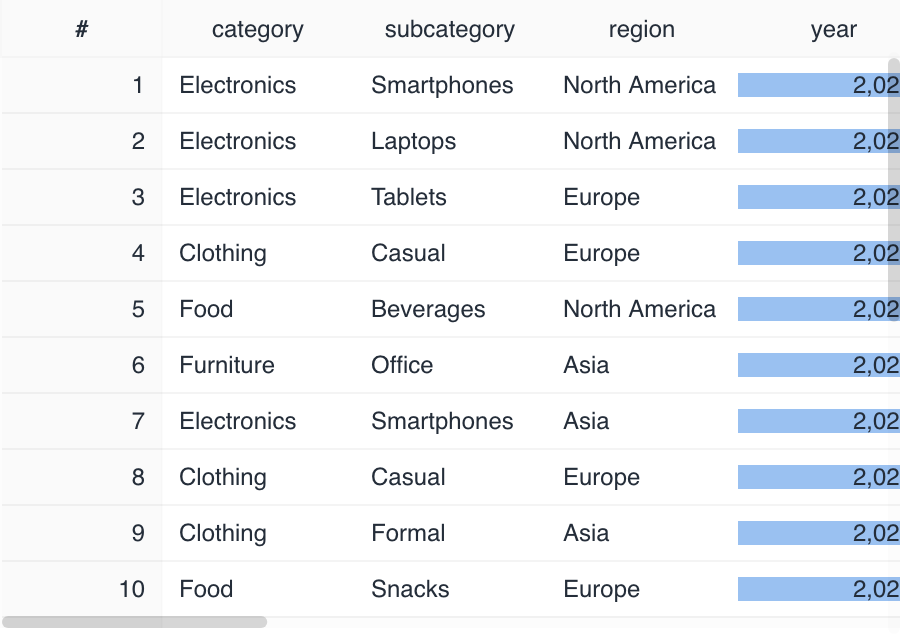

Table Raw
Raw table
Table Raw
Raw table

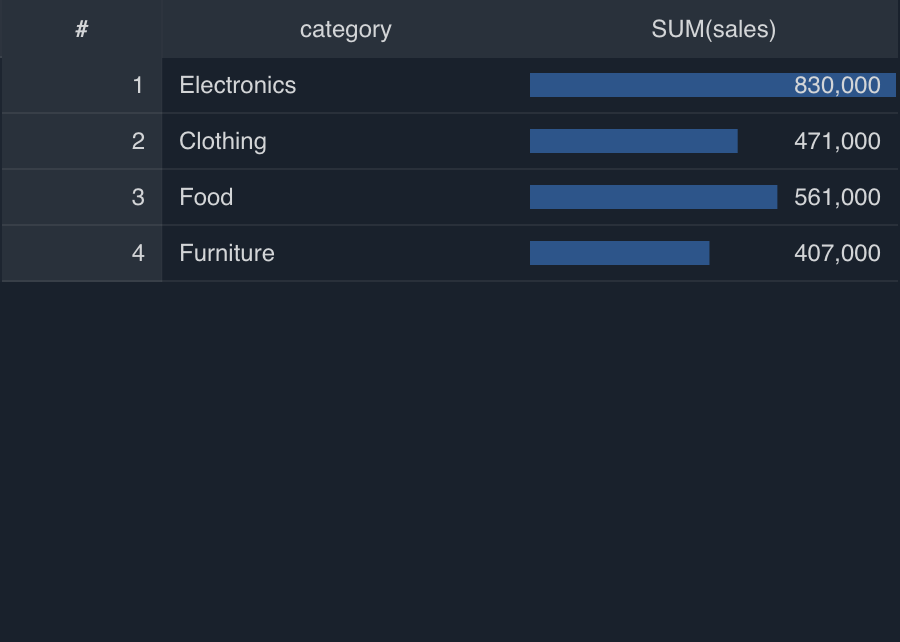

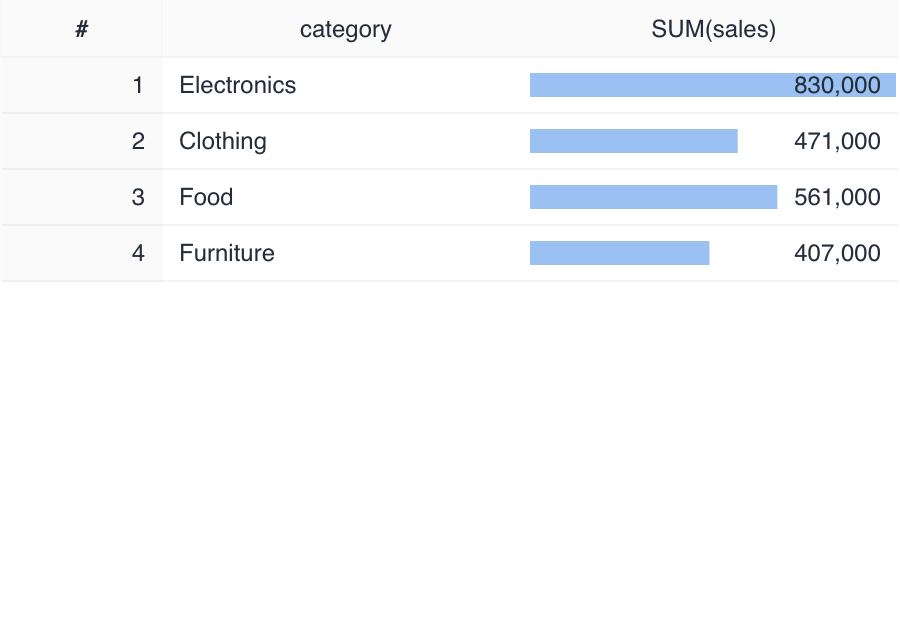

Table Aggregated
Aggregated table
Table Aggregated
Aggregated table

Specification ​

Source type ​

Table Chart has two source types, and the aggregation and display specification differs depending on which one you select.

Source typeDescriptionColumn role
Raw data
(raw table)		Displays fetched rows as-is.Select the columns to display.
Aggregated data
(aggregated table)		Groups and aggregates data.Group by (dimension), Values (metric).

Tips ​

Image display ​

If a column's value is an image URL, you can display the image within the table chart by turning on Enable in advanced settings > Column settings > Image URL preview.

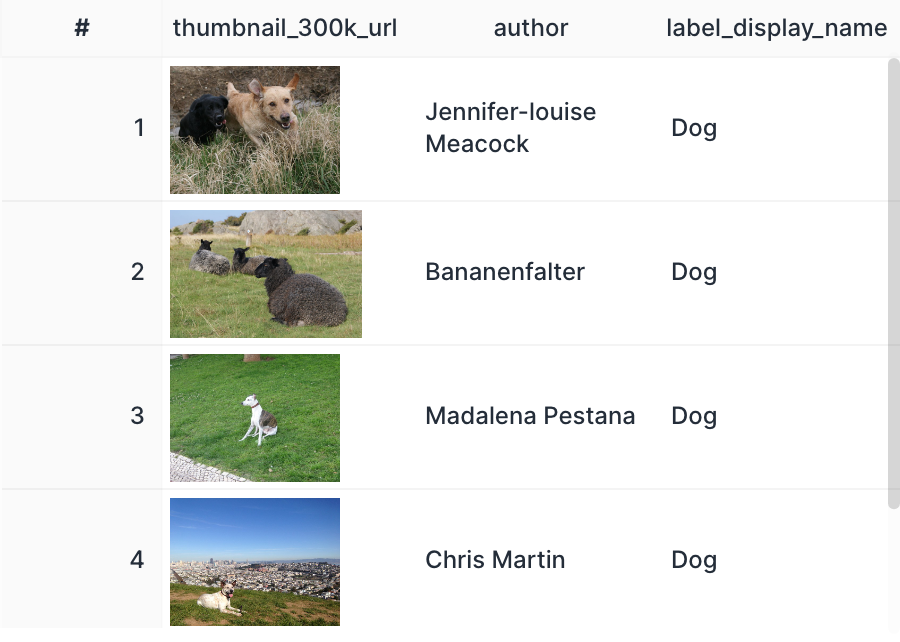

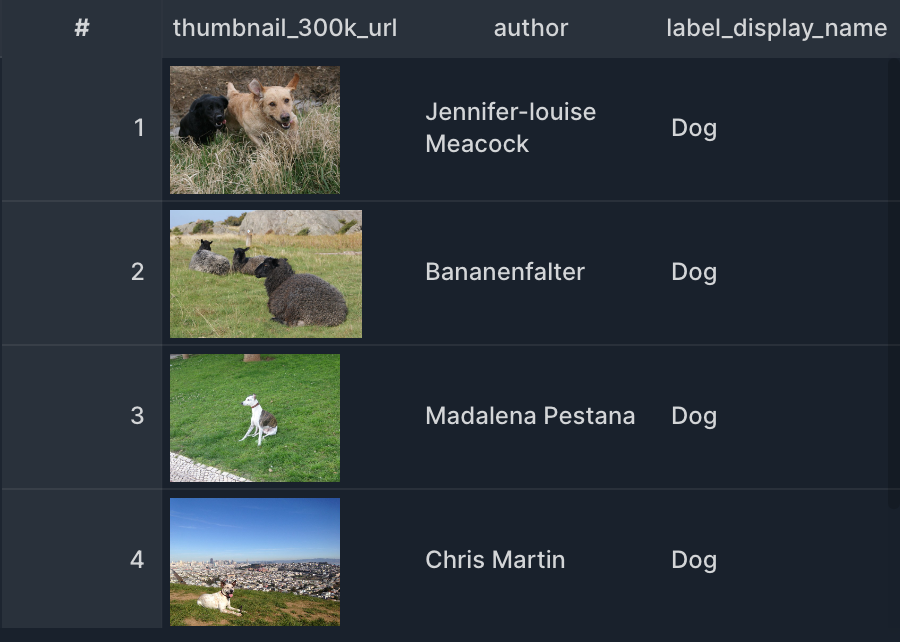

Table Image Preview
Image display
Table Image Preview
Image display

If a column's value is a URL, you can show a link in the table chart that opens the URL in a new tab by turning on advanced settings > Column settings > Enable link URL.

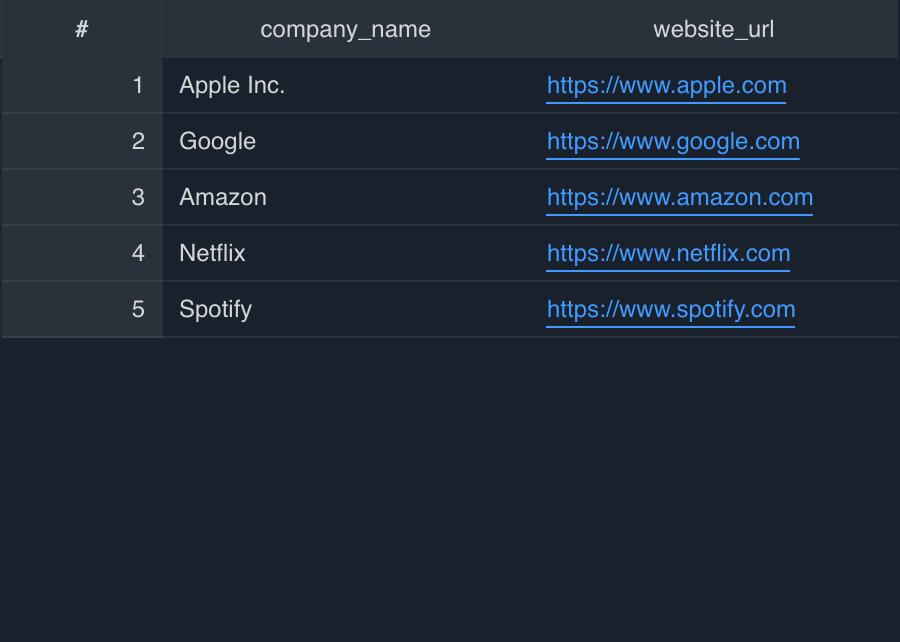

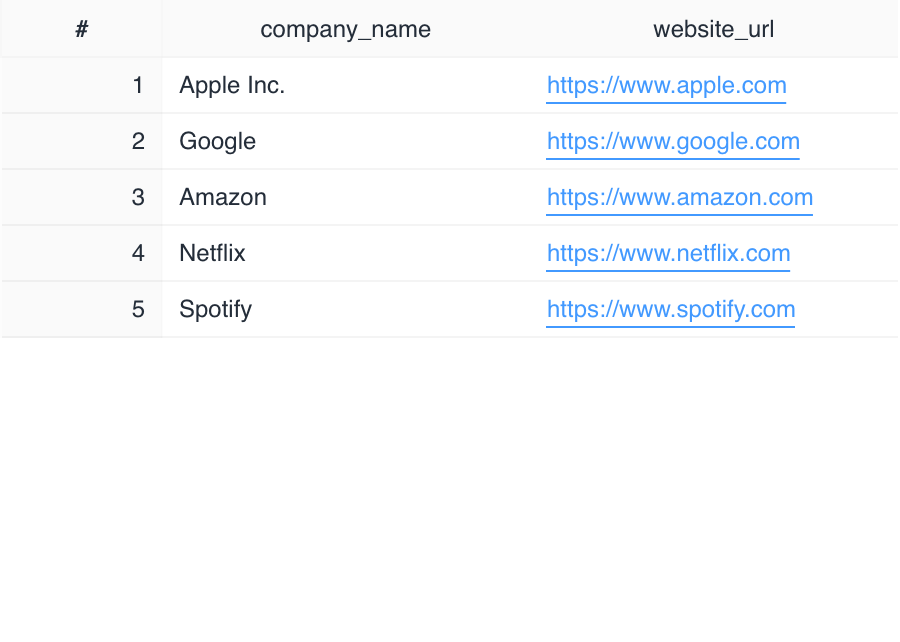

Table Link URL
Link display
Table Link URL
Link display

By dynamically generating a URL with SQL, you can pass each row's data as a parameter to another report page.

  1. Create the report and get the URL.

    • Set a parameter on the destination report, then copy the URL from the browser's address bar.
      • Example URL: https://app.codatum.com/workspace/{workspace_id}/report/{report_id}/{page_id}
    • Checking the parameter ID: note the ID of the parameter widget in the report (for example: 68f369edf5e6f69036b8872d).

  2. Create a URL column with SQL.

    • Use the CONCAT function to generate a URL that includes each row's data as a parameter, and insert it into the chart.

    • Example with a single parameter (country name):

      sql
      CONCAT(
  'https://app.codatum.com/workspace/{workspace_id}/report/{report_id}/{page_id}?cdm.params.{parameter_id}=',
  country  -- the column name to pass as the parameter
) AS link

  3. Enable the link in the table chart.

    • Open the target column under advanced settings > Column settings, and turn on Enable link URL.
Notes ​
  • Replace country with the name of the database column you want to pass as the parameter.
  • The current value of a parameter widget can't be referenced in SQL (only fixed values or column values).
  • When a user selects a cell, the report opens in a new tab.
  • For details on setting up parameters, see Specifying values from a URL.
